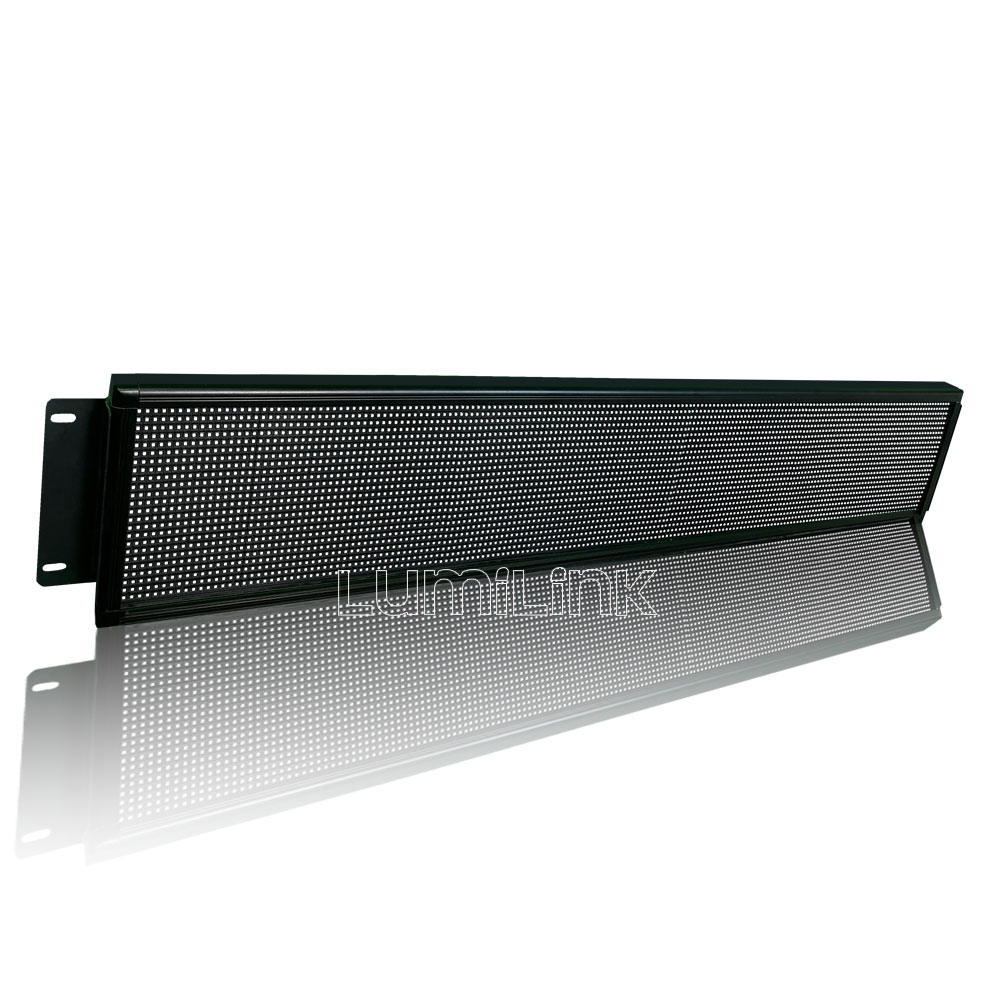

Enhance Public Transport Efficiency with High-Visibility Displays - We provide full range of in-vehicle LED destination displays customized for the public transportation industry, and our products has excellent visibility in any weather conditions.

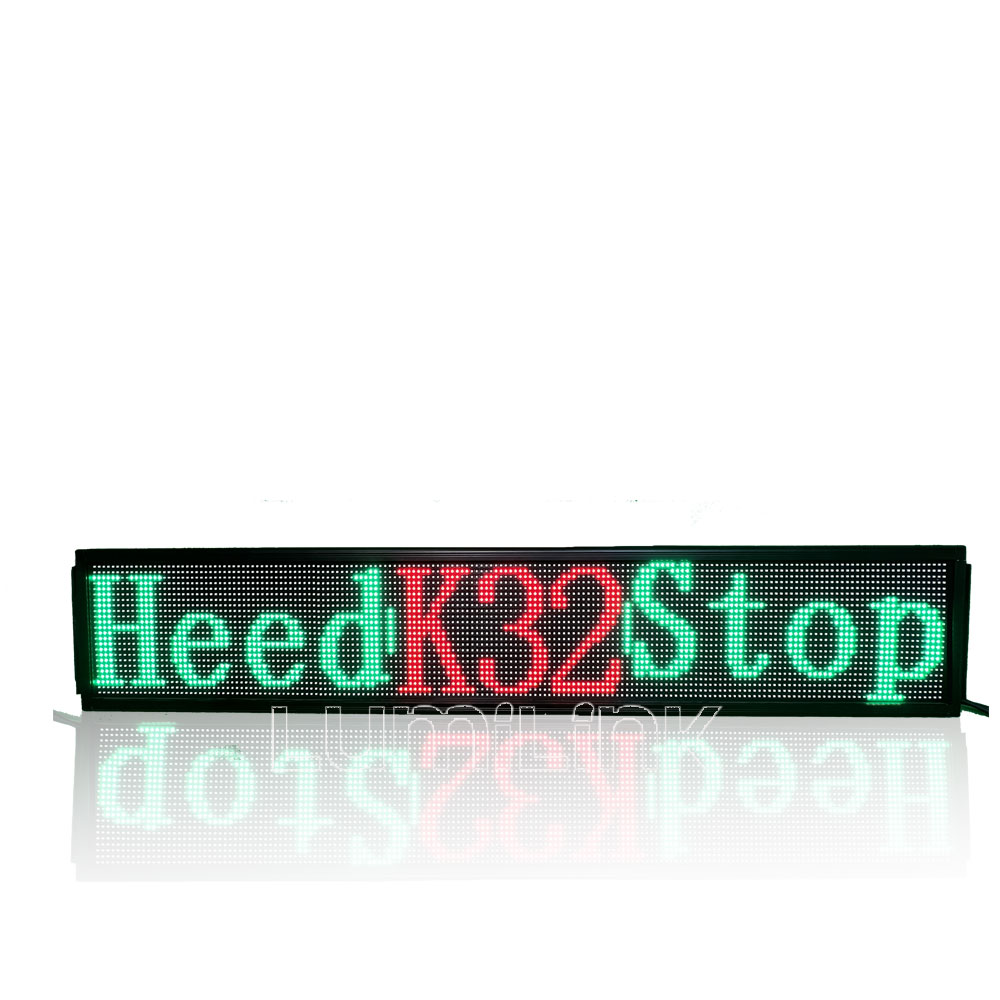

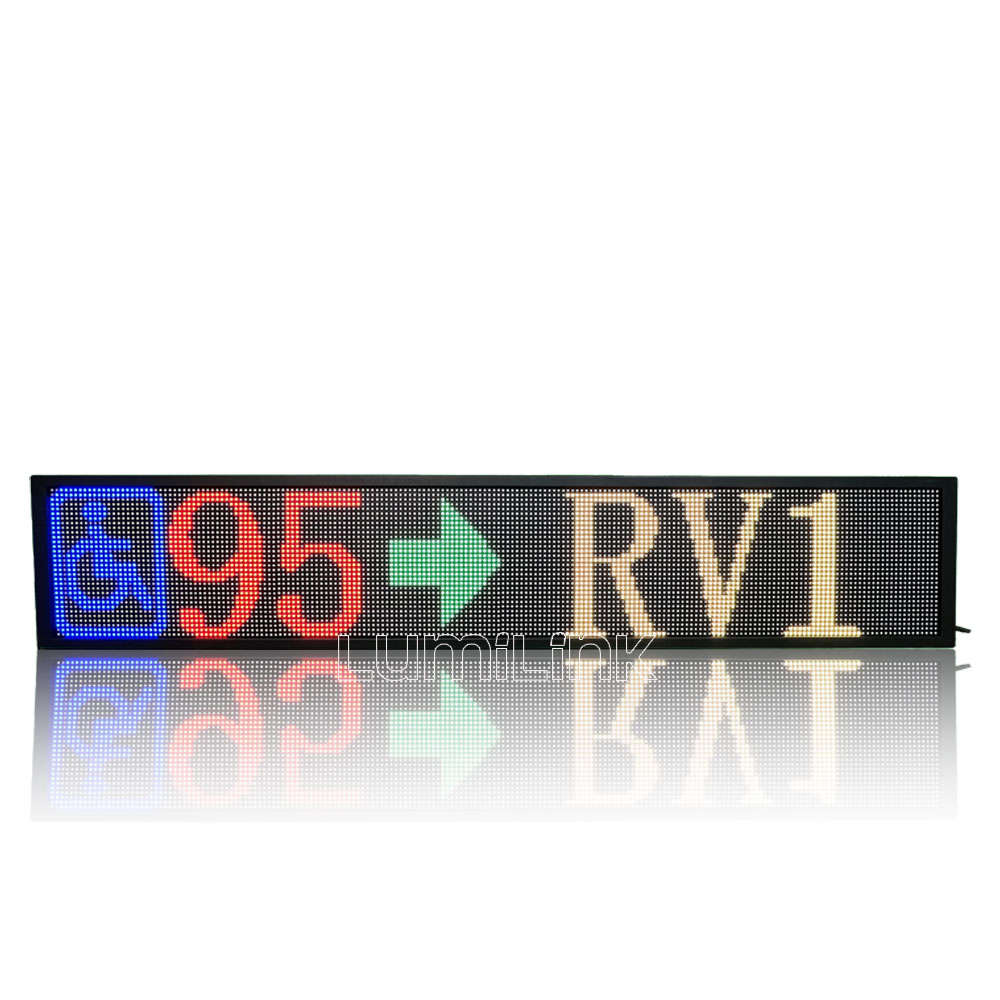

Our full-color bus LED screen can show lines with different mode, instead of traditional fixed monochrome displaying. End users can adjust display mode according to the demand for a bus line.
1、 Automatic switch on & off, flowing text, time display, power-off memory function 2、 Multi-windows display for pictures, videos and texts 3、 Automatically generating play logs, can check playback status of files 4、 Can set with five time sections, supporting timed switch on and off for different sections in every day 5、 Easy installation, customized installation mode available 6、 Support software upgrade 7、 Good resistance to electromagnetic interference, such as radio waves, electric spark, arc, etc… 8、 Power supply with backup function 9、 Can be widely used in buses, subways, passenger stations, coaches, trains and other means of transportation.
High Brightness
Strong Visibility - Automatic brightness adjustment for day and night.
Support Customization
Low Power Consumption, LessHeating
Curve Design Available
Easy Installation & Maintenance - Modular design for fast setup and minimal upkeep.
| Model | 16 dot matrix | 24 dot matrix | 32 dot matrix | 64 dot matrix |
| Pitch | 8x10mm | 8.2x8.2mm | 6x7.625mm | 5mm |
| Pixel configuration | Full color | Full color | Full color | Full color |
| Scanning | 1/8 | 1/8 | 1/8 | 1/8 |
| Frame dimension | 1192*200*45mm | 1090*236*45mm | 1600*302*50mm | 1020*360*50mm |
| Display size | 1152*160mm | 1050*197mm | 1536*244mm | 960*320mm |
| Screen resolution | 144x16 pixels | 128x24 pixels | 256*32pixels | 192*64 |
| Module quantity | 3pcs | 3pcs | 4pcs | 4pcs |
| Brightness | ≥4000cd/㎡ | ≥4000cd/㎡ | ≥4000cd/㎡ | ≥3500cd/㎡ |
| Weight | 6KG | 6KG | 12KG | 12KG |
| Display content | Text (all languages), numbers, symbols, animations, pictures, clocks, etc. |
|||
| Communication protocol | Support for private 485 communication protocol, customized development for project available |
|||
| Communication interface | RS485/CAN/RJ45 |
|||
| Working voltage | DC24V（DC9-36V） |
|||
| Operating temperature | -30~70℃ |
|||
Bus destination display boards manufacturer-Lumi Link was established in October 2014, with deep foundation and rich experience in the field of intelligent transportation,It has a 5000 square meters production plant.

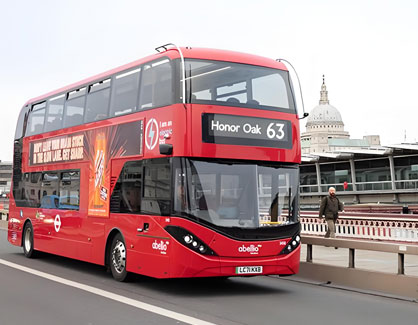

Application: The London bus system integrated our bus led display board to display real-time bus route information, destinations, and arrival times. These bus destination signs support multilingual displays and are built for durability in all weather conditions. Impact: Since the installation of the bus destination signs, passenger experience has improved significantly. Route and destination information is now clearly visible, reducing waiting time confusion by 30%. The enhanced visibility of the bus destination display has also reduced the number of passenger inquiries.

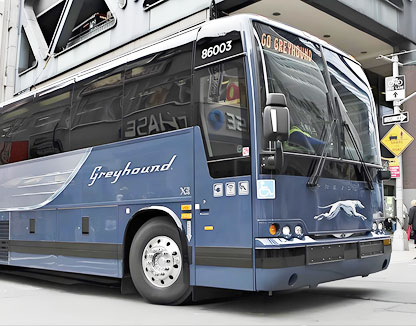

Application: Greyhound buses installed our programmable LED bus destination signs to show real-time route and destination updates. The electronic bus led display board use 4G remote control, allowing dispatchers to modify the bus's destination information instantly. Impact: The real-time updates provided by the bus LED destination signs helped reduce scheduling errors. Passengers could easily find the correct bus, improving operational efficiency by 20%. These bus route display boards have become a crucial tool in Greyhound’s day-to-day operations.

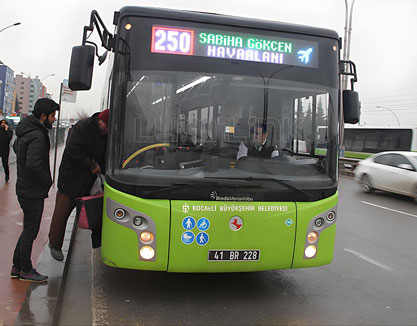

Application: The shuttle buses at airport in Kocaeli, Turkey. our LED destination signs to display flight information, shuttle stops, and transportation updates. These bus destination boards are weatherproof, and the brightness adjusts automatically, making them ideal for airport environments. Impact: With the help of our digital bus led display board, passenger satisfaction increased. The shuttle information is now easily accessible, and complaints decreased by 15%. This electronic bus display enhances the overall communication of shuttle service information.

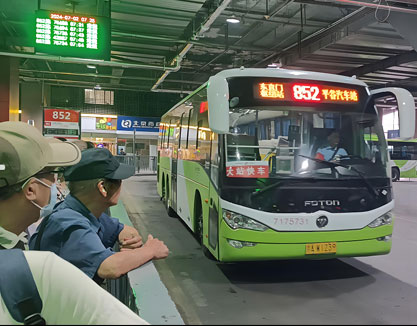

Application: In Beijing, our LED destination board are used at major transfer hubs to display real-time bus routes and transfer details, helping passengers quickly find their correct bus. These bus stop destination displays support multiple line scrolling and integrate with bus arrival time predictions. Impact: The use of bus route signage improved information transmission by 40%, allowing passengers to locate transfer buses quickly and accurately. This reduces congestion and makes navigation smoother in busy metro transfer hubs.

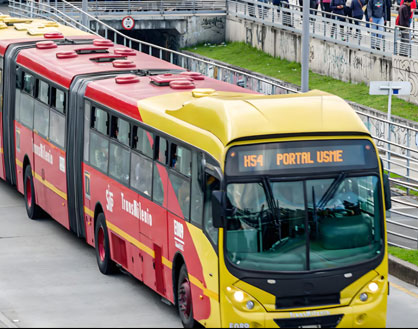

Application: Bogotá’s TransMilenio, one of the most famous Bus Rapid Transit (BRT) systems, uses LED bus destination signs on all buses to display route information and bus lane assignments. The signs also provide real-time updates on traffic conditions and service interruptions. Impact: The integration of bus route display signs improved the overall speed and accuracy of passenger information, helping TransMilenio manage high passenger volumes. These electronic bus destination displays reduced wait times by 20% and improved rider satisfaction significantly.

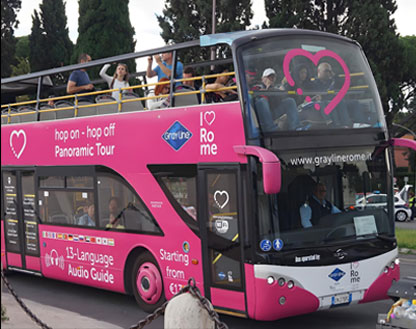

Application: Rome's sightseeing buses use our LED bus signs to display various tourist routes and attraction information. The LED destination board are designed to support multiple languages, catering to the needs of international tourists. Impact: With real-time updates on sightseeing routes and destinations, the digital bus destination signs enhanced the tourist experience. Satisfaction levels increased by 15%, as tourists could easily follow the routes and access information.

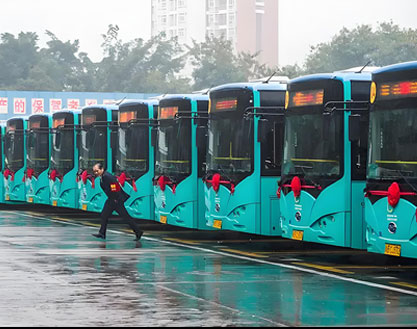

Application:In Shenzhen, one of the largest electric bus networks in the world, our LED bus display board are installed on the entire fleet. These energy-efficient buses require reliable and clear signage to display route information, destination updates, and charging status for passengers. Impact: The use of our bus destination signs on electric buses ensures passengers receive real-time route and charging information. The energy-saving LED bus signs are also in line with the city’s environmental goals, contributing to a 10% improvement in operational efficiency and reducing passenger confusion on eco-friendly routes.

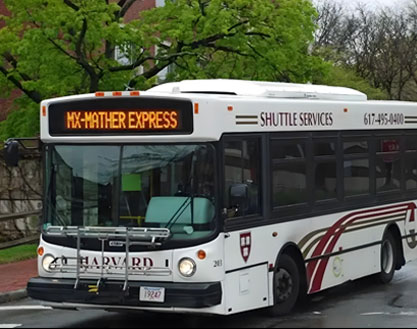

Application: Harvard University’s campus shuttle system features our LED bus destination signs to display real-time stop locations and shuttle arrival times. These bus destination displays are remotely managed, allowing the university to broadcast urgent traffic updates to students. Impact: The bus LED display increased the transparency of campus transportation, leading to a 20% improvement in student satisfaction with the shuttle service.
An LED bus destination sign is an electronic display device that is installed on a bus to show the bus's route, stops, and destination information. This type of display board usually uses LED technology, which can provide clear, bright display effect, to ensure that passengers in a variety of environments can clearly see the bus traveling information. It provides information and assistance to passengers.
An LED bus destination display boards typically installed on the front, side, or rear of a bus to show the bus route, destination, or other relevant information. Compared to traditional mechanical boards, LED destination signs are brighter, programmable, and energy-efficient, making them visible even in bright sunlight or adverse weather conditions.
The colors of LED bus destination display boards include red, yellow, white, blue, green and full color.
It has a variety of color choices, mainly based on the display needs and visual effects to decide what color to match.
1、To realize the remote switch function (parking the engine off can realize the off screen function to reduce power consumption)

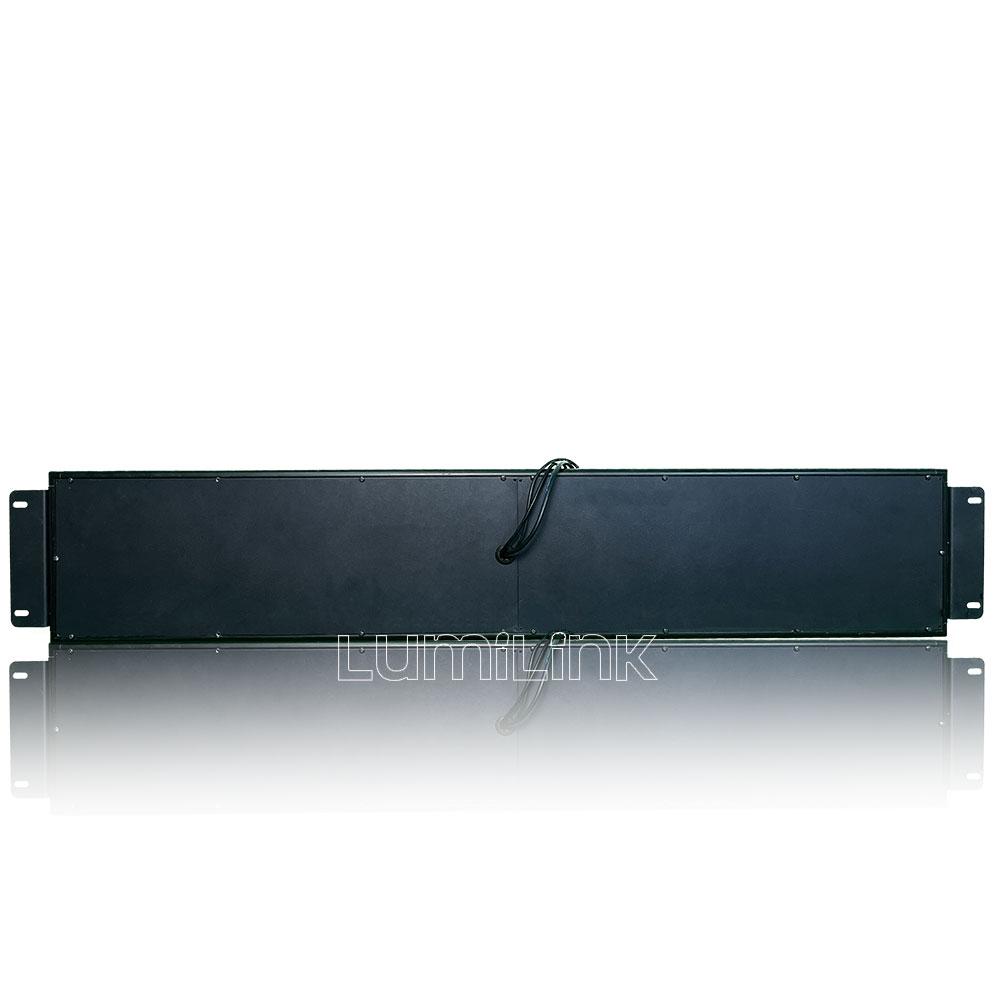

2、Using the aluminum profile shell integral molding ultra-thin design, beautiful, sturdy, conducive to heat dissipation, and easy to maintain.
3、 The use of code-based control protocol, control data flow is small, applicable to GPRS / GPS and other networks of remote control, can be linked to GPS settings to achieve wireless remote control.
4、Bus LED line screen adopts constant current LED driving mode, which ensures the consistency of product brightness and more stable products.
5、The use of multiple safety performance protection measures, including overcurrent protection of the power supply input, the automatic protection of the internal circuit, to ensure the safety of the automobile circuit and the reliability of the equipment.
6、All-weather work: fully adapted to a variety of environments, high brightness, lightning protection, shock resistance overall, cost-effective
7、Bus-mounted LED line screen can adjust the playback speed and display dwell time, a variety of time display format.
Bus LED display signs require minimal maintenance thanks to their durable design. Regular upkeep typically involves cleaning the display surface to remove dust or debris and ensuring that electrical connections remain secure. Our weatherproof LED bus signs are designed to resist water, dust, and temperature fluctuations, minimizing the need for frequent maintenance.
It's known as a destination sign (North American English) or destination indicator/destination blind (British English).
Our bus destination LED displays support multiple languages. Whether you need English, Chinese, Arabic, or any other language, our systems are fully adaptable. This feature makes multi-language bus destination signs ideal for cities with diverse populations, allowing public transport authorities to serve passengers more effectively.
1、Appearance design and internal performance
Bus led road sign display is installed in the bus this kind of public transportation, the appearance has certain requirements, usually need to be relatively thin design, easy to install and look beautiful, at the same time should not lose the solid.Lumi Link's bus led road sign display using movable mounting bracket, easy to install and maintain. The intrinsic performance determines the use cycle of this bus led road sign display, parking the engine off after the screen can be realized to reduce power consumption, good heat dissipation, easy to maintain the bus led road sign display is more favored by the bus operating companies.
2、 Fully meet the needs of users
Look at the LED Bus Destination Display Boards is directly produced by the manufacturer, there are multiple models, a variety of performance, can fully meet the needs of users. In terms of display color, there are red, yellow, blue, white, green and full color to choose from, to meet the different preferences of users, while for the playback of the program can also be achieved at the wire level, such a humane design, only to fully meet the needs of users.
3、Diversified choice of use
Bus led road sign display in the bus this kind of transportation application, not installed in the same fixed place, realize a kind of use. Bus led road sign display some users are installed in the front, side, inside the car, some are installed in the rear window under the windshield. So the bus led display manufacturers need to produce the bus led road sign display can realize many different uses.
4、Solution customization ability
See whether the bus name board manufacturer has the ability to customize the solution, so that the source can do a good job of the product and technology, you can rest assured that the choice.
1、Bus LED route screen outdoor advertising can be customized according to user requirements for the number of words on the road sign (16 dot matrix Chinese characters), the road sign can display the route number, start and stop names, service phrases and other route information, improve the service grade of the city bus bus.
2、The road sign adopts ultra-high brightness LED display tube, with high brightness, long life, can adapt to the outdoor glare, day / night automatic dimming.
3、Multiple display modes: static, banner and scrolling. Ceiling-mounted hemisphere shell High resolution, low power consumption beautifully designed appearance audio/video signal output automatic aperture control infrared night vision function.
A typical LED destination sign for buses lasts between 5 and 10 years. Factors like exposure to weather, frequency of use, and maintenance can impact its lifespan. Our custom bus destination signs use high-quality LED modules designed to last over 50,000 hours. These bus name board are also weather-resistant (IP65-rated), ensuring they withstand rain, dust, and extreme temperatures.
Yes, bus LED destination signs are fully customizable. We offer options to adjust the size, color, font, and display content to meet your specific needs. Whether you need custom LED bus route signs for different bus sizes or multi-language displays, we can tailor the sign to your specifications, ensuring it fits perfectly with your public transport system.
Installing an LED bus route display is straightforward and does not require specialized tools. Our signs come with a modular design for easy installation. While it's not essential to have a professional technician, we recommend hiring someone familiar with electrical work to ensure proper installation of the bus LED route sign. Detailed instructions are provided, and we also offer remote support if needed.
LED bus destination signs require minimal maintenance. The signs are built with durable materials that can withstand harsh outdoor environments. Routine maintenance mainly involves cleaning the screen surface (to prevent dust or dirt from affecting visibility) and checking electrical connections. Our bus name board are designed to be water and dust resistant, so they require little to no regular servicing under normal operating conditions.
Yes, LED bus signs are extremely energy-efficient, consuming far less power than older display technologies. By using low power bus LED destination signs, you can reduce energy costs while maintaining excellent performance. Our signs operate on low voltage systems (12V or 24V), ensuring that they won’t drain the vehicle’s power supply and helping operators save on energy bills.
