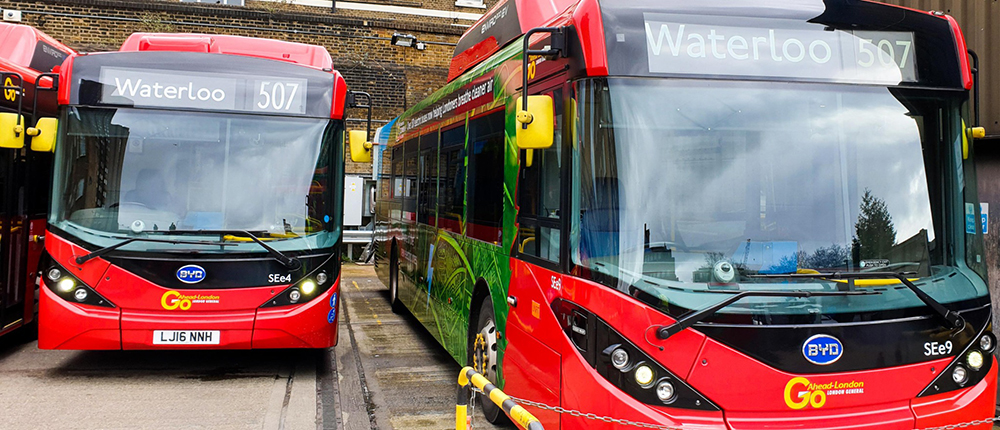

32 dot matrix bus LED destination display board is higher than 24 dot matrix and 16 dot matrix road sign display density of a LED display, it can be more to present the LED display screen to show the bus information, the previous road signage is generally displayed on the site information, beyond the display area automatically left scrolling display, but many people feedback, the bus in operation line information has been moving, can not see all the display of the line site Information content, can not judge in time whether it is self to ride the vehicle, if it can be fixed display, there is no such problem. The higher the resolution of the 32 dot matrix LED road signs can be displayed in a line, can also be divided into two lines of display, which can improve the efficiency and convenience of public transport travel. The display of LED electronic street signs can use different fonts, colors and sizes to represent the information on the sign, thus improving the readability of the sign.
32 Dot Matrix Bus LED Destination Display Sign Features:
Functions: 32 dot matrix LED electronic road signs can display the line, the starting station, the end station, the way station, etc., can be linked to the intelligent terminal or annunciator through RS485
Display mode: conventional general will be 3 areas, the starting station + line number + terminal, the starting station and terminal can display a line of large letters, if a site information words beyond the display area, you can set up automatic partition into 2 two displays on the program.
If the number of words of a station information exceeds the display area, it can be set up in the program to be automatically partitioned into 2 two displays, and the line number can also display different air conditioning symbols according to the summer and winter points.
Bezel size: 1320×360×50mm, can be customized according to customer requirements and installation size.
Display area: 1280mm x 320mm can be customized
Display Points：64×256 Points Customizable
Control mode: linked with the annunciator, LED street sign center controller, vehicle-mounted intelligent terminal scheduling, communication interface: RS485+USB/CAN+USB
Display color: full color
Brand: Lumi Link
Power supply function: under-voltage, over-voltage, over-current, voltage regulator, power reverse polarity protection, anti-electromagnetic interference, power supply output voltage regulator protection and other measures.
Frame structure: private mold aluminum alloy frame, aluminum backplane, beautiful and sturdy, conducive to heat dissipation, light weight, installation, backplane segmented design and easy maintenance.
Display form: no need to partition; support for Chinese characters (multiple fonts), English and other multi-language display, support for digital, symbolic display
